YTH-ES– Medium Pressure Unit for Through-spindle Coolant System –

Trochoid™ Type
Medium Pressure Unit

Turbulence™ Filter

Special turbulence cleans the filter automatically, rendering the filter clog free.

Trochoid™ pump/2.0 MPa, 1.5 MPa

A rotor turning in a trochoidal curve generates pressure to suck and discharge fluid. This is an extremely efficient self-priming pump.

TAZUNA reduces the electric power cost further by approximately 20%.
The pressure and flow rate are automatically adjusted.

YTH-ES

FEATURES
YTH-ES

An All-in-one, Medium Pressure Coolant Unit

All components of a coolant system are consolidated into a single pump. No inline and suction filters are required. The saved space expands the available plant space, resulting in a higher production efficiency.

  • Maximum operating pressure: 2.0 MPa.
  • Maximum flow rate: 28.8 liters/min.
  • No suction filter is required.
  • No inline filter is required.
  • No plumbing is required to interconnect various components.

Turbulence™ Filter

Our special Turbulence™ design generates turbulence around the surface of the filter with 2 wing-shaped vanes rotating around the filter and can wash away sludge from the filter surface continuously.

TurbulenceFilter

High Efficiency Trochoid™ Pump

  • Compatible fluid type
    • Water soluble coolant, non-water soluble coolant.
    • Incompatible with lubricant oils, fuel oils.
    • Incompatible with clear water, demineralized water, aqueous solutions and viscous fluids without rust-preventive property, corrosive fluids, solvents, oil-based materials.
  • Relief valve is built into the pump.
Trochoid™ Pump

YTH-ES Type (Wear-resistant Model)

For its special wear resistant structure, YTH-ES can be installed on coolant tanks of machines that generate hard and abrasive swarf.

  • Balance Plate
    • Pump generates inner pressure to press the balance plate toward the Trochoid rotor side, which helps in reducing the clearance created by wear on rotor side and thereby minimize the pressure drop, ensuring desired performance for a longer time.
  • Shaft and Bearing Reinforcement
    • Improved wear resistance by employing sprayed ceramic on shaft bearing area and use of ceramic bearing.
  • Double Seal & Cartridge System
    • Seal area is reinforced to prevent leakage and cartridge system ensures ease of replacement.
TrochoidRotor

Filter Rating (Nominal value)

Suction strainer3 mm (Solids larger than this must be removed
from the tank.)
Filter20 µm, 50 µm

Corresponding Chip Type

MODEL NUMBERING SYSTEM
YTH-ES

MODEL NUMBERING SYSTEM

TOP-YTH E VD

①Motor Capacity750: 0.75 kW
1500: 1.5 kW
②Motor Type*1[Standard Motor]
A3: AC 200/200/220/230 V
50/60/60/60 Hz
3 phase electric induction motor (IE3)
with CE marking
[Local Motor]
AE: supplied by NOP Germany
AF: supplied by NOP Taiwan
AJ: supplied by NOP Asia (China)
AK: supplied by NOP India
AU/AV: supplied by NOP
North America (USA)
③Pump Capacity
(Trochoid™ pump)
S208: 8 cc/rev
S216: 16 cc/rev
E: Filtering MethodTurbulence™ filter
VD: Relief ValveExternal return type
④Relief Pressure Setting*220: 2.0 MPa
15: 1.5 MPa
➄Filter RatingB: 50 μm
C: 20 μm*3
*1 For further details about the local motors, please contact our overseas branch or subsidiaries.
*2 See “Specifications” to select a model that satisfies your desired relief valve set pressure.
*3 20 μm filter can not be applied to non-water soluble coolant.

SPECIFICATIONS

スクロールできます
形 式Motor Capacity
(kW)
Flow Rate (L/min)
50 Hz/60 Hz
Maximum Pressure (MPa)
50 Hz/60 Hz
Approximate Weight
(kg)
YTH750A3-S208EVD15*0.7512.0/14.41.5/1.534
YTH1500A3-S216EVD**1.524.0/28.82.0/2.039
*Suffix of the model number “**” each indicates ➃Relief Pressure Setting and ➄Filter Rating.

DIMENSIONS
YTH-ES

Typical/Motor Type: A3

YTH-EP Dimensions

Download Drawing

(A password is required to download the file. You can obtain the password here.)

スクロールできます
形式LBCWQHMφDθ(°)TB
YTH750A3-S208EVD15*638.8274.893.5214.820364253.517030151
YTH1500A3-S216EVD**678.3294.8113.5234.840383.527320245168

SAMPLE SYSTEM LAYOUT
YTH-ES

YTH-ES SystemLayou

Please be sure to read the instruction manual before use.

PERFORMANCE CURVES
YTH-ES

YTH-ES PerformanceCurves (Water Soluble Coolant)
YTH-ES PerformanceCurves (Spindle Oil)

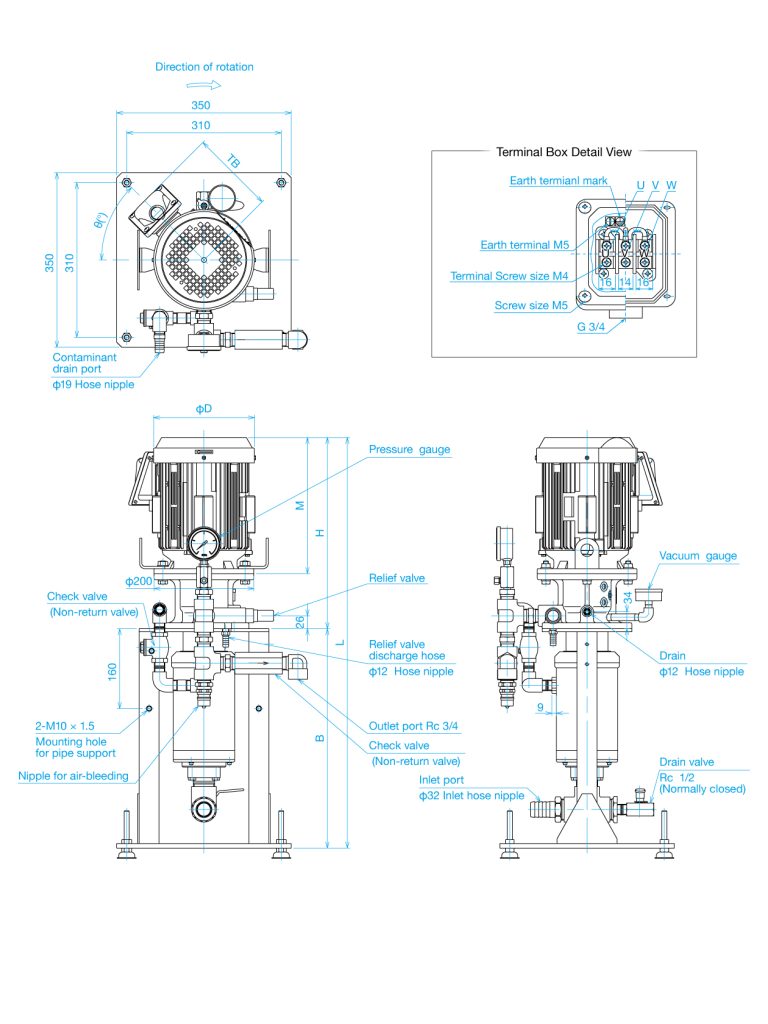

YTH-ES LINE TYPE

*The model number of Line type ends with capital letter “L.” The pump specification is the same as YTH-ES.

NOP Filter Pump External Type

Unlike normal type that can only be installed upon a coolant tank, this external type can be installed independently in a distant place with an extension pipe.
Alteration of tank cover is no longer necessary, allowing quick and easy retrofitting.

YTH-ES Line Type
YTH-EPラインタイプ
*The photo is for illustration purposes only.
For the actual appearance, please refer to the DIMENSIONS.
