YTH-EP
Plunger Type 7.0 MPa High Pressure Unit

Received the “2015 JSME
Excellent Product Award”
Machine tool equipped with
through spindle coolant system
(3.0 MPa up to 7.0 MPa) or jig cleaning nozzle
(NC lathe, Machining center)

YTH-ES
Trochoid™ Type Medium Pressure Unit

Received the “2015 JSME
Excellent Product Award”
Machine tool equipped with
through spindle coolant system
(2.0 MPa or lower) or jig cleaning nozzle
(NC lathe, Machining center)

YTH-CT/CS
Trochoid™ Type Medium Pressure Unit

Machine tool equipped with
through spindle coolant system
(2.0 MPa or lower) or
jig cleaning nozzle
(NC lathe, Machining center)

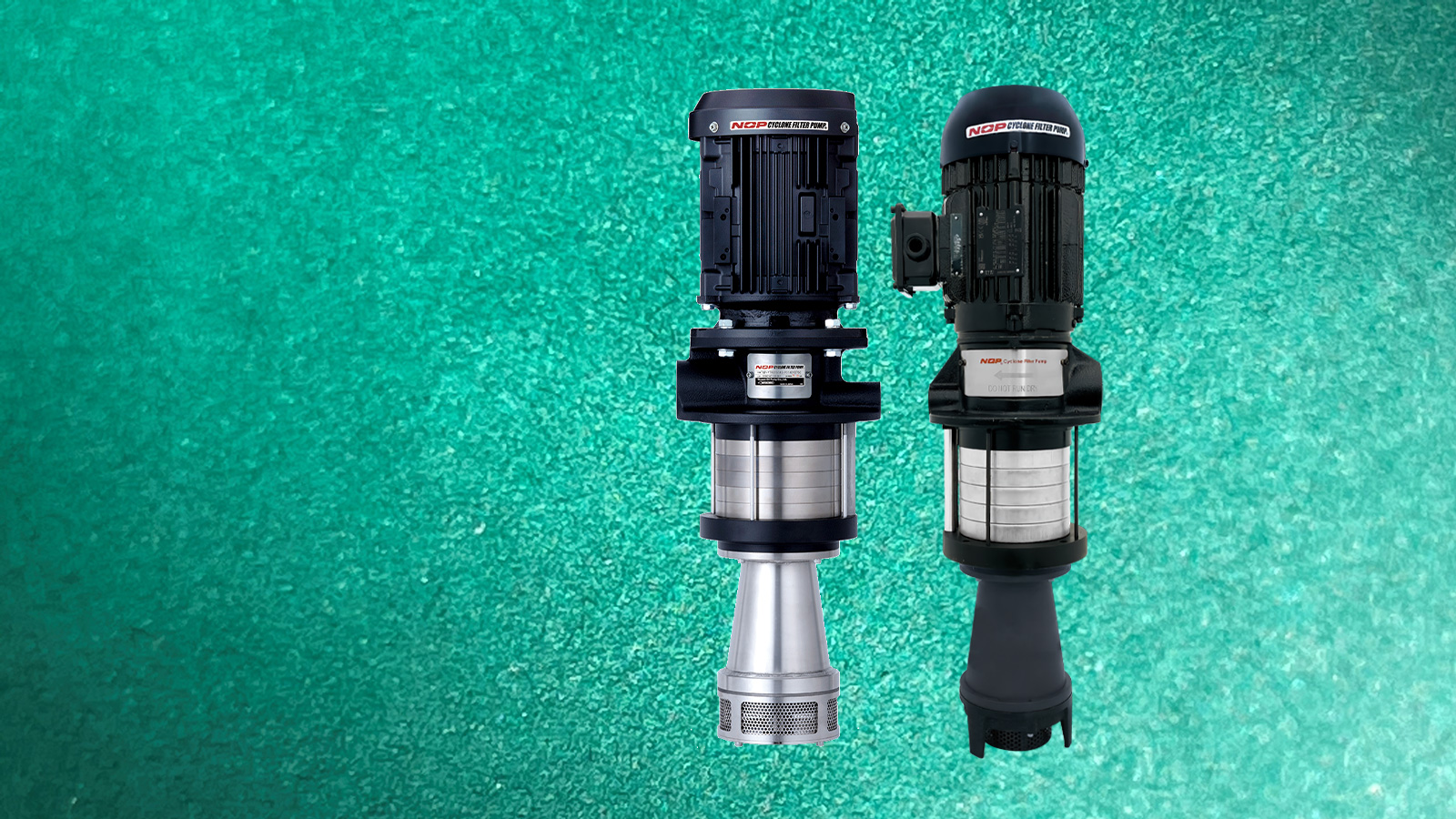

YTH-CI/GCI
Large Flow Low Pressure Coolant Unit with
Built-in Cyclone Filter

Machine tools
(NC lathe, Machining center)

Scroll

NOP FILTER PUMP
Coolant Pump with Built-in Filtration System

Features

コンパクト

Compact

Various Components are All Combined in One.
Achieves space saving.

メンテナンス低減

Reduction in Filter Maintenance

A unique filter reduces chip clogging.
It improves frequent and troublesome filter clogging.

微細な切粉を除去

Removes Fine Chips

Sludge is removed by filtering the cyclone.Circulate a clean filtered coolant.

タービュランスフィルター

Turbulence™ Filter

The 2 wing-shaped vanes generate turbulence on the filter surface and separate the sludge from the filter.

ダブルサイクロン

Double-cyclone Filter

Fine sludge is removed with large and small cyclone filters.

倒立サイクロン

Reversed-cyclone Filter

Compact and can be installed on top of the coolant. It sucks up the coolant, separates it into sludge and clean coolant, and discharges it from the top.

Pump Selection Chart

You can see the recommended pump from the flowchart. Click the tab below to see the chart.
Open the pump selection chart (click on the product name you arrived at to go to that product page)

※1 Intermittent operation is also possible if an unloading valve is installed.
※2 Work material hardness given in this chart is a guide only. The actual hardness varies depending on components and constituent elements contained in work materials regardless of HV300. See “WORK MATERIAL COMPATIBILITY TABLES.”

Related Products

Coolant Unit TNC

Coolant unit exclusively for BT30 machining center with NOP FILTER PUMP.
The new machine realizes "space and resource saving," "reduced tank maintenance, improved work efficiency," "reduced machining defects," and "improved machining accuracy.
